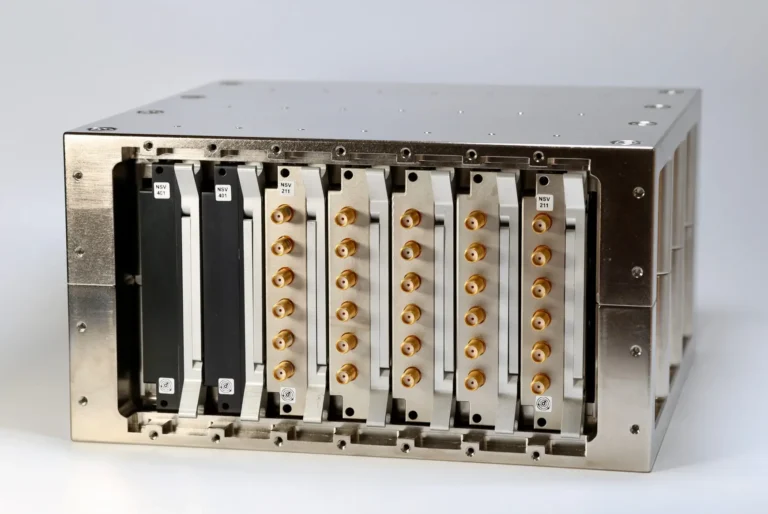

NSV-1312/1323/1325 SpaceVPX Chassis
The NSV-1312/1323/1325 are 3-, 5-, and 7-module SpaceVPX-2022-compatible chassis designed for space flight. The chassis includes one or two VITA 62 compatible power module slots. The backplane is equipped with redundant power planes, I2C IPMC buses, USB links, and PCIe Gen4 x4 links. GigE Ethernet and 4x RS485 UART payload connections are available on SOSA-compatible connectors on the back panel.

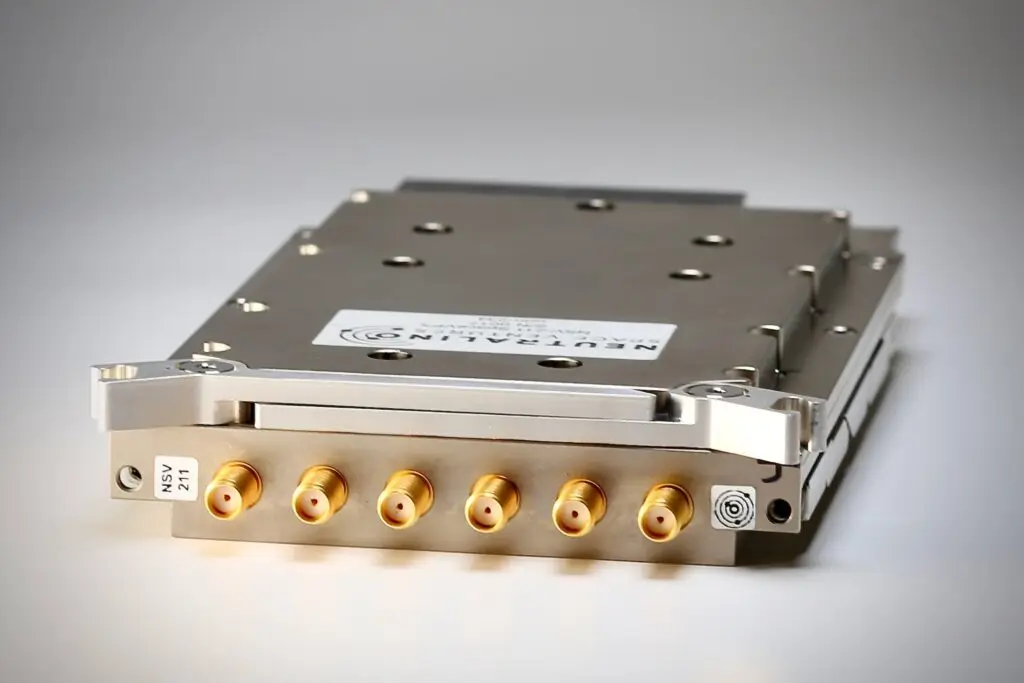

NSV-211 Space VPX Orin
The NSV-211 SpaceVPX Orin is a SpaceVPX-2022 compatible Single Board Computer. Based on the Nvidia Jetson AGX Orin, the 3U VPX module includes a 12-core CPU complex, dual PCIe x4 Gen4 backplane ports, and a General Purpose GPU optimized for computer vision and machine learning. The module interfaces six GMSL3 power-over-coax cameras using standard 50-ohm cables up to 15m long, allowing placement flexibility and thermo-mechanical isolation. The NSV-211 includes drivers for the NSV-530, NSV-571, and NSV-455 cameras and has a maximum throughput of 5 gigapixels per second.
NSV-401 VITA 62 Power Module
The NSV-401 is a VITA62-2022 compliant power module designed for use in a Neutralino Space Chassis. The module provides isolated 12 V and 3.3 V power rails with power sequencing and INHIBIT* and ENABLE* controls. Radiation test data is available on request.
