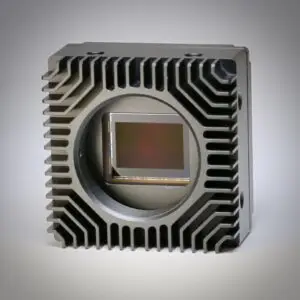

NSV-455: 61 Megapixel GMSL3 Camera
The NSV-455 camera integrates a Sony IMX455 sensor with a GMSL3 power-over-coax interface. The 43.3mm 1.5:1 imager operates at 4.0 FPS in 16-bit mode. Region of interest modes support smaller captures at up to 100 FPS.
The NSV-455’s GMSL3 coax link delivers power and commands to the imager module while simultaneously streaming images to an NSV-211 series Space VPX module. The imager module includes an auxiliary port with I2C and 12V power for use with external devices such as heating, focusing motors and filters. A single NSV-211 computer can support 4 cameras simultaneously or 6 cameras multiplexed. Radiation test data is available on request.

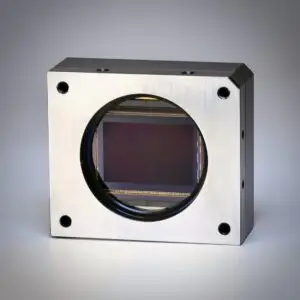

NSV-571: 26 Megapixel GMSL2 Camera
The NSV-571 camera integrates a Sony IMX571 sensor with a GMSL2 power-over-coax interface. The 28.3 mm 1.5:1 imager operates at 6.8 FPS in 16-bit mode. Region of interest modes support smaller captures at up to 100 FPS.
The NSV-571’s GMSL2 coax link delivers power and commands to the imager module while simultaneously streaming images to an NSV-211 series Space VPX module. The imager module includes an auxiliary port with I2C and 12V power for use with external devices such as heaters, focusing motors and filters. A single NSV-211 computer can support 4 cameras simultaneously or 6 cameras multiplexed. Radiation test data is available on request.

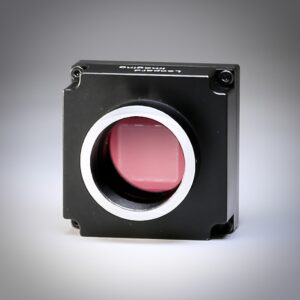

NSV-530: 24 Megapixel GMSL2 Camera
The NSV-530 camera integrates a Sony IMX530 sensor with a GMSL2 power-over-coax interface. The 19.3 mm 1.2:1 imager operates at 30 FPS in 16-bit mode.
The NSV-530’s GMSL2 coax link delivers power and commands to the imager module while simultaneously streaming images to an NSV-211 series Space VPX module. A single NSV-211 computer can support 4 cameras simultaneously or 6 cameras multiplexed. Radiation test data is available on request.
